LED lighting
Low light makes kitchen work much more difficult. The same goes for light bulbs that constantly burn out. To guarantee ease of use, Amica hoods are equipped with an innovative energy-efficient LED lighting system. The LED lights are highly durable, and emit a bright and pleasant light which isn’t tiring for the eyes. Choose the Amica hood, and enjoy the best solutions!
i
The graphic materials provided in the product description, such as images and videos, show how a particular function works and may not precisely represent how a specific model works.

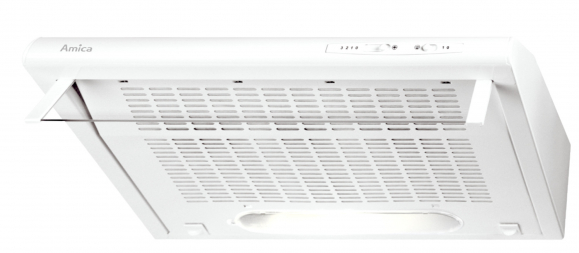

OSC5112W
-
FEATURES
- Accessories -
- Air flaps Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Low noise level No
- Type of work Extraction/Recirculation
-
Equipment
- Carbon filter(s) included Yes
- Number of carbon filters 1
- Number of grease filters 1
- Number of layers in grease filter 3
- Number of speed 3
- Type of control Slider
- Type of grease filters Aluminum mesh
- Carbon filter type FWU 50
-
Technical data
- Frequency 50
- Air flow at 1 speed - extractor by EN 61591 105 m3/h
- Air flow at 2 speed - extractor by EN 61591 137 m3/h
- Air flow at 3 speed - extractor by EN 61591 173 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 173 m3/h
- Air Flow at Minimum Speed in Normal Use 105 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 103.8 m3/h
- Air Pressure at Best Efficiency Point P BEP 181 Pa
- Annual energy consumption 41.4 kWh
- Annual energy consumption 41.4 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 61 lux
- Control panel on one side/two sides One side
- Dimensions of grease filter 300 x 390 mm
- Display color No
- Distance from light cover to wall 2.5 cm
- Distance to electric hob 45 cm
- Distance to gas hob 65 cm
- Electric Power Input at Best Efficiency Point - W BEP 61.7 W
- Energy Efficiency Index - EEI hood 80.4
- Fluid Dynamic Efficiency - FDE hood 8.5
- Fluid Dynamic Efficiency Class E
- Grease Filtering Efficiency - GFE hood 67.5 %
- Grease Filtering Efficiency Class D
- Gross volume 0.0549 m³
- Internal/external motor Internal
- Lighting Efficiency - LE hood 14.5 lux/W
- Lighting Efficiency Class D
- Lighting Efficiency Class D
- Maximum Possible Air Flow 173 m3/h
- Motor unit rated power 85 W
- Motor type/model K-20 025 02 HE
- Net depth 50.5 cm
- Net height max 13 cm
- Net height min 13 cm
- Net weight 4.5 kg
- Net width 50 cm
- Noise level at 1 speed - extractor by EN 60704-2-13 53 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 58 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 63 dB
- Nominal Power of the Lighting System - W L 4.2 W
- Number of motor units 1
- Number units of main lighting 1
- Air exhaust diameter 12 cm
- Type of plug or cable Euro plug
- Power cabel length 220 cm
- Power rating 89 W
- Power Supply Voltage 230V
- Power unit of main lighting 4 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 63 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 53 dB
- Noise level 63 dB
- Time Increase Factor - f 1.7
- Type of main lighting LED
