High efficiency
Do your clothes, curtains and duvet covers smell of cooking? Not with our Amica cooking hoods! Our hoods are equipped with modern and highly efficient ventilation fans which completely eliminate cooking smells. Make your kitchen work convenient!
-
Quiet operation
Sure, we sometimes find ourselves cooking food while listening to music or watching TV. Thanks to the low noise level of Amica hoods, there is nothing to disturb us in our labours. Select the low fan speed to remove cooking fumes and enjoy quiet hood operation, at less than 50 dB. Something to be enjoyed when our kitchen is open to our main living space.
-
LED lighting
Low light makes kitchen work much more difficult. The same goes for light bulbs that constantly burn out. To guarantee ease of use, Amica hoods are equipped with an innovative energy-efficient LED lighting system. The LED lights are highly durable, and emit a bright and pleasant light which isn’t tiring for the eyes. Choose the Amica hood, and enjoy the best solutions!
-
Delayed switch off
Very often the air in the kitchen still needs to be cleared, even though the cooking or frying has finished. With the Automatic switch-off system you can specify how long the hood should run after you’ve finished preparing the meal, so that it can clear the air of any undesirable smells. And when it’s done, it turns off on its own. Now you can breathe easily, and savour the convenience.

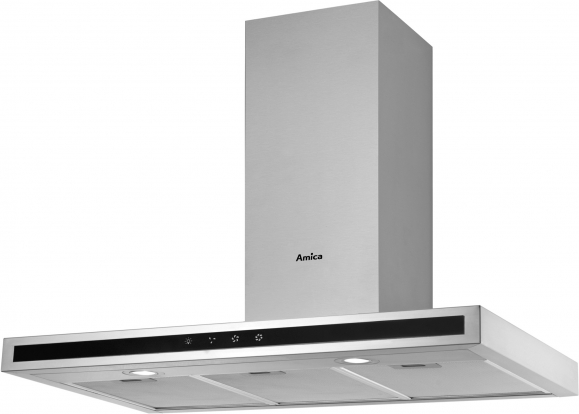

OKS9541T
OKS9541T
-
High efficiency
-
Quiet operation
-
LED lighting
-
Sensor control system
-
Delayed switch off
-
FEATURES
- Accessories -
- Air flaps Yes
- Connector for changed outlet shape Yes
- Delay Yes
- High efficiency Yes
- Maximum time of delay 15 '
- Montage template Yes
- Outlet diameter reductor Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Low noise level Yes
- Type of work Extraction/Recirculation
-
Equipment
- Number of carbon filters 1
- Number of grease filters 3
- Number of layers in grease filter 3
- Number of speed 3
- Type of control Sensor
- Type of grease filters Aluminium frame
- Carbon filter type FWK 245
-
Technical data
- Air flow at 1 speed - extractor by EN 61591 281 m3/h
- Air flow at 2 speed - extractor by EN 61591 487 m3/h
- Air flow at 3 speed - extractor by EN 61591 639 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 639 m3/h
- Air Flow at Minimum Speed in Normal Use 281 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 332.1 m3/h
- Air Pressure at Best Efficiency Point P BEP 430 Pa
- Annual energy consumption 45.7 kWh
- Annual energy consumption 45.7 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 116 lux
- Control panel on one side/two sides One side
- Dimensions of grease filter 334.5 x 274.5mm
- Display color Red
- Distance from light cover to wall 43 cm
- Distance to electric hob 45 cm
- Distance to gas hob 65 cm
- Electric Power Input at Best Efficiency Point - W BEP 130.4 W
- Energy Efficiency Index - EEI hood 51.2
- Fluid Dynamic Efficiency - FDE hood 30.4
- Fluid Dynamic Efficiency Class A
- Grease Filtering Efficiency - GFE hood 75.2 %
- Grease Filtering Efficiency Class C
- Gross volume 0.2644 m³
- Internal/external motor Internal
- Main lighting colour temperature [K] 3000
- Lighting Efficiency - LE hood 30 lux/W
- Lighting Efficiency Class A
- Lighting Efficiency Class A
- Maximum Possible Air Flow 639 m3/h
- Motor unit rated power 210 W
- Motor type/model SM650
- Net depth 50 cm
- Net height max 103.5 cm
- Net height min 65.5 cm
- Net weight 15.4 kg
- Net width 89.8 cm
- Noise level at 1 speed - extractor by EN 60704-2-13 48 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 63 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 67 dB
- Nominal Power of the Lighting System - W L 3.9 W
- Number of motor units 1
- Number units of main lighting 2
- Air exhaust diameter 15 cm
- Type of plug or cable Euro plug
- Power Consumption in Standby Mode - Ps 0.3 W
- Power cabel length 200 cm
- Power rating 213 W
- Power Supply Voltage 220-240V
- Power unit of main lighting 1.5 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 67 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 48 dB
- Noise level 67 dB
- Time Increase Factor - f 0.9
- Type of main lighting LED - other
