LED lighting
Low light makes kitchen work much more difficult. The same goes for light bulbs that constantly burn out. To guarantee ease of use, Amica hoods are equipped with an innovative energy-efficient LED lighting system. The LED lights are highly durable, and emit a bright and pleasant light which isn’t tiring for the eyes. Choose the Amica hood, and enjoy the best solutions!
i
The graphic materials provided in the product description, such as images and videos, show how a particular function works and may not precisely represent how a specific model works.

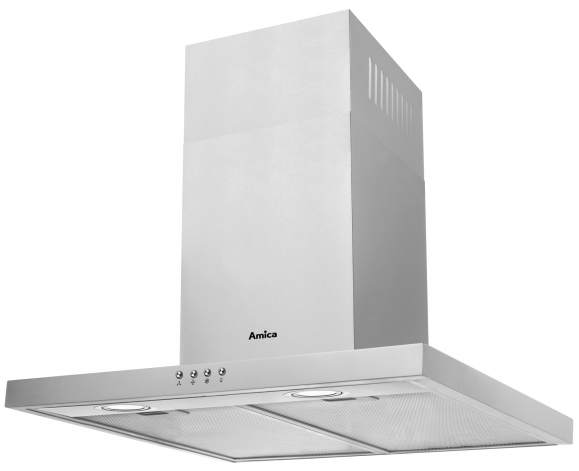

OKP6321T
-
FEATURES
- Accessories Pipe
- Air flaps Yes
- Montage template Yes
- Panel - language version Pictograms
- Pipe Yes
- Protection class of electric shock I_Class
- Low noise level No
- Type of work Extraction/Recirculation
-
Equipment
- Illuminated push buttons Yes
- Number of carbon filters 1
- Number of grease filters 2
- Number of layers in grease filter 5
- Number of speed 3
- Type of control Soft touch
- Type of grease filters Aluminium frame
- Carbon filter type KF 17192
-
Technical data
- Frequency 50
- Air flow at 1 speed - extractor by EN 61591 351 m3/h
- Air flow at 2 speed - extractor by EN 61591 400 m3/h
- Air flow at 3 speed - extractor by EN 61591 455 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 455 m3/h
- Air Flow at Minimum Speed in Normal Use 351 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 251.1 m3/h
- Air Pressure at Best Efficiency Point P BEP 263 Pa
- Annual energy consumption 64.1 kWh
- Annual energy consumption 64.1 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 144 lux
- Container qty 40'HQ 490
- Control panel on one side/two sides One side
- Dimensions of grease filter 340 x 260.2 mm
- Display color Red
- Distance from light cover to wall 38.5 cm
- Distance to electric hob 45 cm
- Distance to gas hob 65 cm
- Electric Power Input at Best Efficiency Point - W BEP 119.8 W
- Energy Efficiency Index - EEI hood 76.9
- Fluid Dynamic Efficiency - FDE hood 15.3
- Fluid Dynamic Efficiency Class D
- Grease Filtering Efficiency - GFE hood 75 %
- Grease Filtering Efficiency Class C
- Gross volume 0.1395 m³
- Internal/external motor Internal
- Main lighting colour temperature [K] 6500
- Lighting Efficiency - LE hood 48 lux/W
- Lighting Efficiency Class A
- Lighting Efficiency Class A
- Maximum Possible Air Flow 455 m3/h
- Motor unit rated power 150 W
- Motor type/model C series
- Net depth 50 cm
- Net height max 91.5 cm
- Net height min 53.5 cm
- Net weight 10.9 kg
- Net width 60 cm
- Noise level at 1 speed - extractor by EN 60704-2-13 59 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 61 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 63 dB
- Nominal Power of the Lighting System - W L 3 W
- Number of motor units 1
- Number units of main lighting 2
- Air exhaust diameter 15 cm
- Type of plug or cable Euro plug
- Power Consumption in Off Mode - Po 0.34 W
- Power cabel length 120 cm
- Power rating 153 W
- Power Supply Voltage 230V
- Power unit of main lighting 1.5 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 63 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 59 dB
- Noise level 63 dB
- Time Increase Factor - f 1.4
- Type of main lighting LED - other
