LED lighting
Low light makes kitchen work much more difficult. The same goes for light bulbs that constantly burn out. To guarantee ease of use, Amica hoods are equipped with an innovative energy-efficient LED lighting system. The LED lights are highly durable, and emit a bright and pleasant light which isn’t tiring for the eyes. Choose the Amica hood, and enjoy the best solutions!
i
The graphic materials provided in the product description, such as images and videos, show how a particular function works and may not precisely represent how a specific model works.

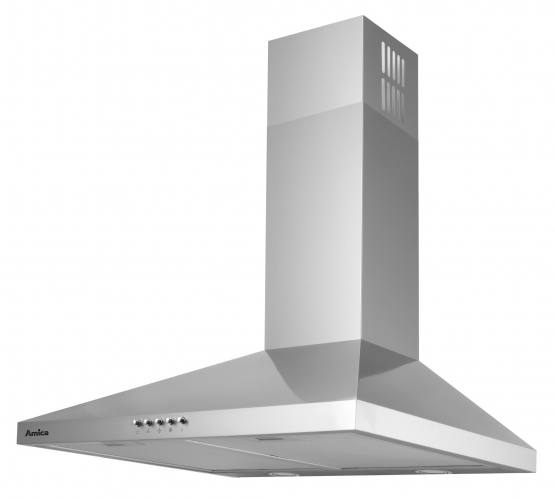

OKP6221Z
-
FEATURES
- Accessories Pipe
- Air flaps Yes
- Montage template Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Low noise level No
- Type of work Extraction/Recirculation
-
Equipment
- Number of carbon filters 2
- Number of grease filters 2
- Number of layers in grease filter 5
- Number of speed 3
- Type of control Push buttons
- Type of grease filters Aluminium frame
- Carbon filter type KF 17154
-
Technical data
- Frequency 50
- Air flow at 1 speed - extractor by EN 61591 228 m3/h
- Air flow at 2 speed - extractor by EN 61591 307 m3/h
- Air flow at 3 speed - extractor by EN 61591 388 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 388 m3/h
- Air Flow at Minimum Speed in Normal Use 228 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 224.5 m3/h
- Air Pressure at Best Efficiency Point P BEP 189.7 Pa
- Annual energy consumption 52 kWh
- Annual energy consumption 52 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 378 lux
- Container qty 40'HQ 810
- Control panel on one side/two sides One side
- Dimensions of grease filter 384.8 x 278 mm
- Display color No
- Distance from light cover to wall 1.5 cm
- Distance to electric hob 45 cm
- Distance to gas hob 65 cm
- Electric Power Input at Best Efficiency Point - W BEP 84.3 W
- Energy Efficiency Index - EEI hood 78.7
- Fluid Dynamic Efficiency - FDE hood 14
- Fluid Dynamic Efficiency Class D
- Grease Filtering Efficiency - GFE hood 70 %
- Grease Filtering Efficiency Class C
- Gross volume 0.0876 m³
- Internal/external motor Internal
- Main lighting colour temperature [K] 3000
- Lighting Efficiency - LE hood 47.3 lux/W
- Lighting Efficiency Class A
- Lighting Efficiency Class A
- Maximum Possible Air Flow 388 m3/h
- Motor unit rated power 120 W
- Motor type/model F series
- Net depth 49 cm
- Net height max 98 cm
- Net height min 60 cm
- Net weight 7 kg
- Net width 60 cm
- Noise level at 1 speed - extractor by EN 60704-2-13 58 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 63 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 65 dB
- Nominal Power of the Lighting System - W L 8 W
- Number of motor units 1
- Number units of main lighting 2
- Air exhaust diameter 12 cm
- Type of plug or cable Euro plug
- Power cabel length 120 cm
- Power rating 128 W
- Power Supply Voltage 230V
- Power unit of main lighting 4 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 65 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 58 dB
- Noise level 65 dB
- Time Increase Factor - f 1.5
- Type of main lighting LED GU10
