High efficiency
Do your clothes, curtains and duvet covers smell of cooking? Not with our Amica cooking hoods! Our hoods are equipped with modern and highly efficient ventilation fans which completely eliminate cooking smells. Make your kitchen work convenient!
-
Quiet operation
Sure, we sometimes find ourselves cooking food while listening to music or watching TV. Thanks to the low noise level of Amica hoods, there is nothing to disturb us in our labours. Select the low fan speed to remove cooking fumes and enjoy quiet hood operation, at less than 50 dB. Something to be enjoyed when our kitchen is open to our main living space.
-
LED lighting
Low light makes kitchen work much more difficult. The same goes for light bulbs that constantly burn out. To guarantee ease of use, Amica hoods are equipped with an innovative energy-efficient LED lighting system. The LED lights are highly durable, and emit a bright and pleasant light which isn’t tiring for the eyes. Choose the Amica hood, and enjoy the best solutions!
-
LED display
It takes just a glance at the control display to check the hood setting, including the fan speed level and the remaining time left to run. Most models do not even require us to check when the filters need cleaning or changing - the filter indicators simply tell us when.
-
Delayed switch off
Very often the air in the kitchen still needs to be cleared, even though the cooking or frying has finished. With the Automatic switch-off system you can specify how long the hood should run after you’ve finished preparing the meal, so that it can clear the air of any undesirable smells. And when it’s done, it turns off on its own. Now you can breathe easily, and savour the convenience.

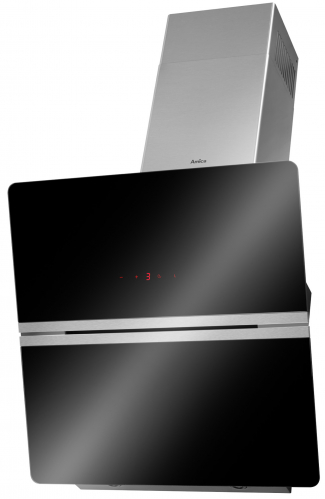

OKC657S
OKC657S
-
High efficiency
-
Quiet operation
-
LED lighting
-
LED display
-
Sensor control system
-
Delayed switch off
-
Filter saturation indicator
-
FEATURES
- Accessories -
- Air flaps Yes
- Charcoal filter change indicator Yes
- Delay Yes
- FrameOn Yes
- Filter saturation indicator Yes
- High efficiency Yes
- Maximum time of delay 90 '
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Low noise level Yes
- Type of work Extraction/Recirculation
-
Equipment
- Number of carbon filters 1
- Number of grease filters 1
- Number of layers in grease filter 3
- Number of speed 4
- PowerBooster Yes
- Type of control Sensor
- Type of display LED
- Type of grease filters Aluminium frame
- Carbon filter type FWK 280
-
Technical data
- Air flow at 1 speed - extractor by EN 61591 281 m3/h
- Air flow at 2 speed - extractor by EN 61591 342 m3/h
- Air flow at 3 speed - extractor by EN 61591 442 m3/h
- Air flow at 4 speed - extractor by EN 61591 703 m3/h
- Air Flow at Intensive or Boost Setting [If Available] 703 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 442 m3/h
- Air Flow at Minimum Speed in Normal Use 281 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 429 m3/h
- Air Pressure at Best Efficiency Point P BEP 392 Pa
- Annual energy consumption 58.9 kWh
- Annual energy consumption 58.9 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 729 lux
- Control panel on one side/two sides One side
- Dimensions of grease filter 250 x 300 x 9 mm
- Display color Red
- Distance from light cover to wall 2 cm
- Distance to electric hob 45 cm
- Distance to gas hob 65 cm
- Electric Power Input at Best Efficiency Point - W BEP 159 W
- Energy Efficiency Index - EEI hood 55.6
- Fluid Dynamic Efficiency - FDE hood 29.4
- Fluid Dynamic Efficiency Class A
- Grease Filtering Efficiency - GFE hood 58.1 %
- Grease Filtering Efficiency Class E
- Gross volume 0.2499 m³
- Intensive or Boost Setting Auto-Off time 8 '
- Internal/external motor Internal
- Lighting Efficiency - LE hood 121.5 lux/W
- Lighting Efficiency Class A
- Lighting Efficiency Class A
- Limitation of Exhaust Air - t limit 9 '
- Maximum Possible Air Flow 727 m3/h
- Motor unit rated power 260 W
- Motor type/model S-45 004 01
- Net depth 42.5 cm
- Net height max 121 cm
- Net height min 105 cm
- Net weight 19.76 kg
- Net width 60 cm
- Noise level at 1 speed - extractor by EN 60704-2-13 49 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 53 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 58 dB
- Noise level at 4 speed - extractor by EN 60704-2-13 67 dB
- Nominal Power of the Lighting System - W L 6 W
- Number of motor units 1
- Number units of main lighting 2
- Air exhaust diameter 15 cm
- Type of plug or cable Euro plug
- Power Consumption in Standby Mode - Ps 0.25 W
- Power cabel length 170 cm
- Power rating 266 W
- Power Supply Voltage 230V
- Power unit of main lighting 3 W
- Noise level on TURBO mode 67 dB
- Sound Power Emission at Intensive or Boost Setting [if available] 67 dB
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 58 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 49 dB
- Noise level 58 dB
- Time Increase Factor - f 0.9
- Type of main lighting LED
