High efficiency
Do your clothes, curtains and duvet covers smell of cooking? Not with our Amica cooking hoods! Our hoods are equipped with modern and highly efficient ventilation fans which completely eliminate cooking smells. Make your kitchen work convenient!
-
LED lighting
Low light makes kitchen work much more difficult. The same goes for light bulbs that constantly burn out. To guarantee ease of use, Amica hoods are equipped with an innovative energy-efficient LED lighting system. The LED lights are highly durable, and emit a bright and pleasant light which isn’t tiring for the eyes. Choose the Amica hood, and enjoy the best solutions!
-
LED display
It takes just a glance at the control display to check the hood setting, including the fan speed level and the remaining time left to run. Most models do not even require us to check when the filters need cleaning or changing - the filter indicators simply tell us when.
-
Delayed switch off
Very often the air in the kitchen still needs to be cleared, even though the cooking or frying has finished. With the Automatic switch-off system you can specify how long the hood should run after you’ve finished preparing the meal, so that it can clear the air of any undesirable smells. And when it’s done, it turns off on its own. Now you can breathe easily, and savour the convenience.
-
Automatic switch-off
Automatic switch-off means the convenience of stopping the hood with just one motion. Push the hood panel back in and the hood stops by itself. It’s easy and convenient.

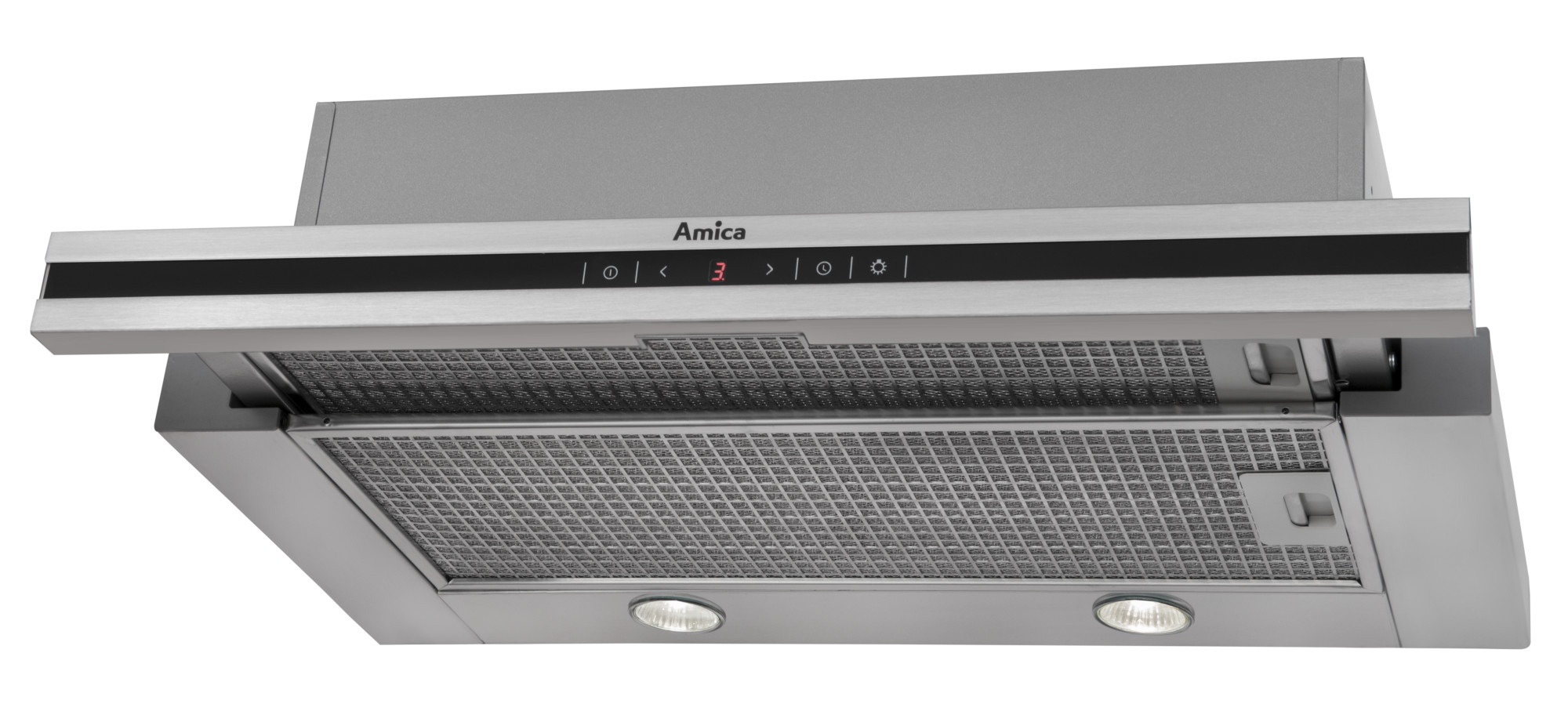

OTS6521I
OTS6521I
-
High efficiency
-
LED lighting
-
LED display
-
Sensor control system
-
Delayed switch off
-
Automatic switch-off
-
FEATURES
- Accessories -
- Air flaps Yes
- Auto Off Yes
- Connector for changed outlet shape Yes
- Delay Yes
- Filter saturation indicator Yes
- High efficiency Yes
- Maximum time of delay 15 '
- Montage template Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Low noise level No
- Type of work Extraction/Recirculation
-
Equipment
- Number of carbon filters 2
- Number of grease filters 2
- Number of layers in grease filter 5
- Number of speed 3
- Type of control Sensor
- Type of display LED
- Type of grease filters Decorative aluminium frame
- Carbon filter type FWK 160
-
Technical data
- Frequency 50
- Air flow at 1 speed - extractor by EN 61591 301 m3/h
- Air flow at 2 speed - extractor by EN 61591 384 m3/h
- Air flow at 3 speed - extractor by EN 61591 425 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 425 m3/h
- Air Flow at Minimum Speed in Normal Use 301 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 274 m3/h
- Air Pressure at Best Efficiency Point P BEP 226 Pa
- Annual energy consumption 123.8 kWh
- Annual energy consumption 123.8 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 150 lux
- Control panel on one side/two sides One side
- Dimensions of grease filter 477x205. 130x475 mm
- Display color Red
- Distance from light cover to wall 1.8 cm
- Distance to electric hob 45 cm
- Distance to gas hob 65 cm
- Electric Power Input at Best Efficiency Point - W BEP 196 W
- Energy Efficiency Index - EEI hood 99.2
- Fluid Dynamic Efficiency - FDE hood 8.8
- Fluid Dynamic Efficiency Class E
- Grease Filtering Efficiency - GFE hood 65 %
- Grease Filtering Efficiency Class D
- Gross volume 0.0619 m³
- Internal/external motor Internal
- Main lighting colour temperature [K] 3000
- Lighting Efficiency - LE hood 50 lux/W
- Lighting Efficiency Class A
- Lighting Efficiency Class A
- Maximum Possible Air Flow 425 m3/h
- Motor unit rated power 125 W
- Motor type/model 2 x SP33
- Net depth 31 cm
- Net height max 17.4 cm
- Net height min 17.4 cm
- Net weight 8 kg
- Net width 60 cm
- Noise level at 1 speed - extractor by EN 60704-2-13 57 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 64 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 68 dB
- Nominal Power of the Lighting System - W L 3 W
- Number of motor units 2
- Number units of main lighting 2
- Air exhaust diameter 12 cm
- Type of plug or cable Euro plug
- Power Consumption in Off Mode - Po 0.36 W
- Power cabel length 150 cm
- Power rating 253 W
- Power Supply Voltage 220-240V
- Power unit of main lighting 1.5 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 68 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 57 dB
- Noise level 68 dB
- Time Increase Factor - f 1.7
- Type of main lighting LED GU10
