High efficiency
Do your clothes, curtains and duvet covers smell of cooking? Not with our Amica cooking hoods! Our hoods are equipped with modern and highly efficient ventilation fans which completely eliminate cooking smells. Make your kitchen work convenient!
-
LED lighting
Low light makes kitchen work much more difficult. The same goes for light bulbs that constantly burn out. To guarantee ease of use, Amica hoods are equipped with an innovative energy-efficient LED lighting system. The LED lights are highly durable, and emit a bright and pleasant light which isn’t tiring for the eyes. Choose the Amica hood, and enjoy the best solutions!
-
Automatic switch-on
The hideaway hood panel is a solution which guarantees complete convenience. To turn the telescopic hood to the required extraction power, just pull out the panel with one move. It’s easy and convenient.
-
Automatic switch-off
Automatic switch-off means the convenience of stopping the hood with just one motion. Push the hood panel back in and the hood stops by itself. It’s easy and convenient.

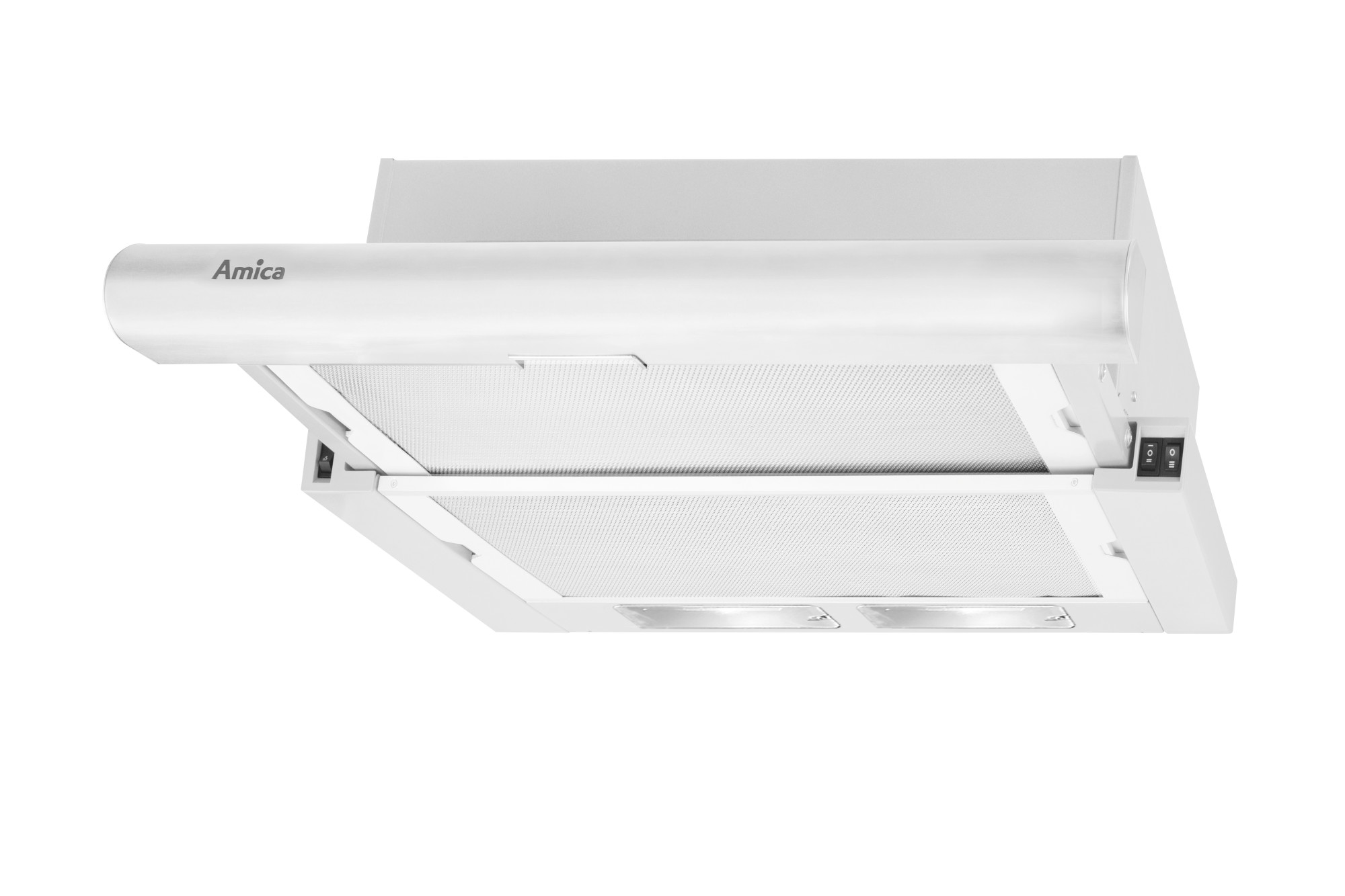

OTS6235W
OTS625W
-
High efficiency
-
LED lighting
-
Automatic switch-on
-
Automatic switch-off
-
FEATURES
- Accessories -
- Air flaps Yes
- Auto Off Yes
- Automatic switch-on Yes
- High efficiency Yes
- Montage template Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Low noise level No
- Type of work Extraction/Recirculation
-
Equipment
- Number of carbon filters 2
- Number of grease filters 2
- Number of layers in grease filter 3
- Number of speed 3
- Type of control Rocker switch
- Type of grease filters Aluminium frame
- Carbon filter type FWK 140
-
Technical data
- Air flow at 1 speed - extractor by EN 61591 195 m3/h
- Air flow at 2 speed - extractor by EN 61591 242 m3/h
- Air flow at 3 speed - extractor by EN 61591 303 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 303 m3/h
- Air Flow at Minimum Speed in Normal Use 195 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 199.8 m3/h
- Air Pressure at Best Efficiency Point P BEP 200 Pa
- Annual energy consumption 64.2 kWh
- Annual energy consumption 64.2 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 87 lux
- Control panel on one side/two sides One side
- Dimensions of grease filter 476x130mm / 477x205mm
- Display color No
- Distance from light cover to wall 0.6 cm
- Distance to electric hob 45 cm
- Distance to gas hob 65 cm
- Electric Power Input at Best Efficiency Point - W BEP 102.2 W
- Energy Efficiency Index - EEI hood 85.7
- Fluid Dynamic Efficiency - FDE hood 10.9
- Fluid Dynamic Efficiency Class E
- Grease Filtering Efficiency - GFE hood 81.2 %
- Grease Filtering Efficiency Class C
- Gross volume 0.0593 m³
- Internal/external motor Internal
- Main lighting colour temperature [K] 2700
- Lighting Efficiency - LE hood 14 lux/W
- Lighting Efficiency Class D
- Lighting Efficiency Class D
- Maximum Possible Air Flow 303 m3/h
- Motor unit rated power 125 W
- Motor type/model sp33
- Net depth 31 cm
- Net height max 17.4 cm
- Net height min 17.4 cm
- Net weight 6 kg
- Net width 60 cm
- Noise level at 1 speed - extractor by EN 60704-2-13 54 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 59 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 65 dB
- Nominal Power of the Lighting System - W L 6.4 W
- Number of motor units 1
- Number units of main lighting 2
- Air exhaust diameter 12 cm
- Type of plug or cable Euro plug
- Power cabel length 150 cm
- Power rating 131 W
- Power Supply Voltage 220-240V
- Power unit of main lighting 3 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 65 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 54 dB
- Noise level 65 dB
- Time Increase Factor - f 1.6
- Type of main lighting LED bulb E14
