Frequency 50 |
Air flow at 1 speed - extractor by EN 61591 275 m3/h |
Air flow at 2 speed - extractor by EN 61591 356 m3/h |
Air flow at 3 speed - extractor by EN 61591 439 m3/h |
Air flow at 4 speed - extractor by EN 61591 708 m3/h |
Air Flow at Intensive or Boost Setting [If Available] 708 m3/h |
Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 439 m3/h |
Air Flow at Minimum Speed in Normal Use 275 m3/h |
Air Flow Rate at Best Efficiency Point - Q BEP 402.3 m3/h |
Air Pressure at Best Efficiency Point P BEP 381 Pa |
Éves energiafogyasztás 75.7 kWh |
Éves energia fogyasztás 75.7 kWh |
Average Illumination of the Lighting System on the Cooking Surface - E middle 595 lux |

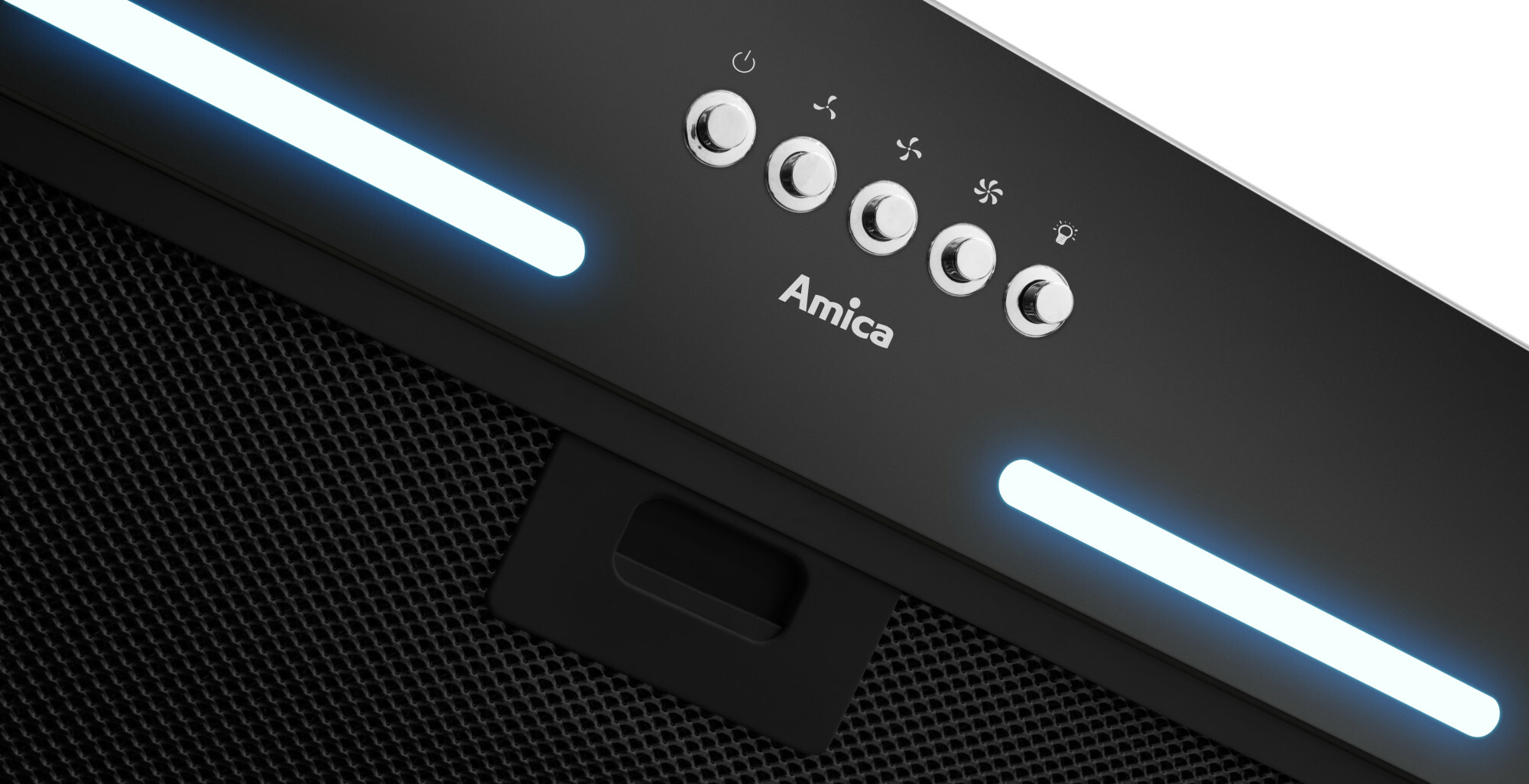

Control panel on one side/two sides One side |
Dimensions of grease filter 250 x 300 mm |
Display color Red |
Distance to electric hob 45 cm |
Distance to gas hob 65 cm |
Electric Power Input at Best Efficiency Point - W BEP 155.3 W |
Energy Efficiency Index - EEI hood 65.8 |
Fluid Dynamic Hatékonyság 27.4 |
Fluid Dynamic Hatékonyság B |
Grease Filtering Efficiency - GFE hood 69.9 % |
Zsírszűrési hatékonyság D |
Gross volume 0.3608 m³ |
Intensive or Boost Setting Auto-Off time 5 ' |
Internal/external motor Internal |
Világítás 22.9 lux/W |
Világítási hatékonysági osztály B |
Világítás B |
Limitation of Exhaust Air - t limit 8 ' |
Maximum Possible Air Flow 708 m3/h |
Motor unit rated power 260 W |
Motor type/model S-45 004 01 |
Net depth 59.5 cm |
Net height max 105.2 cm |
Net height min 85.2 cm |
Nettó tömeg 27.1 kg |
Net width 90 cm |
Zajszint 52 dB |
Zajszint 57 dB |
Zajszint 62 dB |
Zajszint 68 dB |
Nominal Power of the Lighting System - W L 26 W |
Number of motor units 1 |
Number units of main lighting 2 |
Légkifújó átmérője 15 cm |
Type of plug or cable Euro plug |
Power Consumption in Standby Mode - Ps 0.25 W |
Power cabel length 200 cm |
Power rating 286 W |
Tápfeszültség 230V |
Power unit of main lighting 13 W |
Zajszint 68 dB |
Sound Power Emission at Intensive or Boost Setting [if available] 68 dB |
Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 62 dB |
Sound Power Emission at Minimum Speed Available in Normal Use 52 dB |
Zajszint 62 dB |
Time Increase Factor - f 1 |
Type of main lighting LED |
