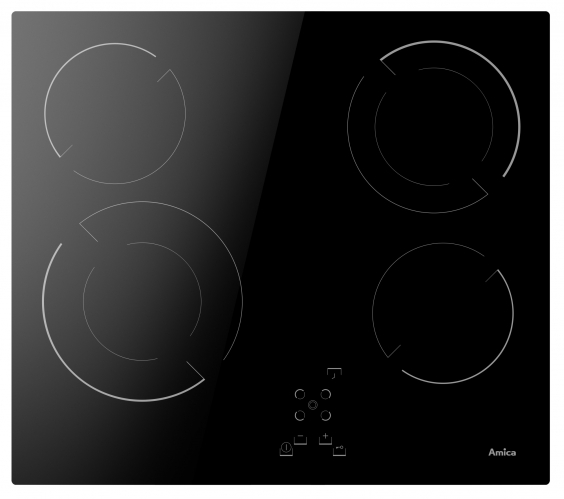

VH 6241

VH 6241

VH 6241 VH 6241

Műszaki adatok

jellemzők

Rapid preheating Yes	ChildLock Yes	Direct Touch No data in PDM for HQF
Front left heating zone dimension (cm) 12/21	Left front zone energy consumption FL 193.5 Wh/kg	Front left heating zone power rating (kW) 0.75/2.2
Rear left heating zone dimension (cm) 14.5	Left rear zone energy consumption RL 193.5 Wh/kg	Rear left heating zone power rating (kW) 1.2
Mounting data No data in PDM for HQF	Number of power levels 9	Residual heat indicator Yes
Front right heating zone dimension (cm) 14.5	Right front zone energy consumption FR 193.5 Wh/kg	Front right heating zone power rating (kW) 1.2
Rear right heating zone dimension (cm) 12/18	Right rear zone energy consumption RR 193.5 Wh/kg	Rear right heating zone power rating (kW) 0.8/1.7	Temperature limiter Yes	Timer Yes	Hob energy consumption 193.5 Wh/kg
Control type +/-

Felszerelés

Power indicator lamp Yes

Műszaki adatok

Connection type 3N~230/400 V	Country of Origin on Rating Label no_data_PDM	Cut out size - depth 490 mm
Cut out size - width 560 mm	Display color Red	Edge finish C-cut
Gross volume 0.0517 m³	Maximális teljesítmény 6.3 kW	In-furniture depth 42 mm
Front left heating zone type HiLight	Rear left heating zone type HiLight	Net depth 522 mm
Net height 48 mm	Nettó tömeg 7.95 kg	Net width 592 mm
Number of heating elements 4	Position of connection cable inlet Left - rear	Position Of Connection Cable Left Rear
Front right heating zone type HiLight	Rear right heating zone type HiLight	Hob type Ceramic
