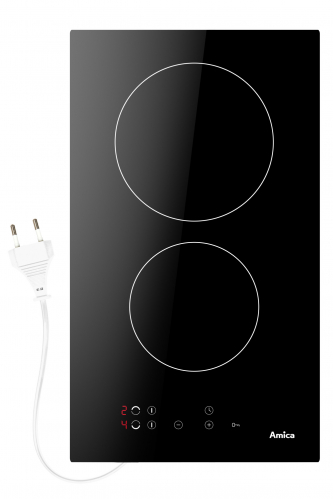

VH 3021
VH 3021
Műszaki adatok
jellemzők
| Rapid preheating Yes | ChildLock Yes | Direct Touch No data in PDM for HQF |
| Front left heating zone dimension (cm) Nie dotyczy | Front middle zone energy consumption F 193.5 Wh/kg | Middle Front Heating Zone Type HiLight |
| Rear middle zone energy consumption R 193.5 Wh/kg | Middle Rear Heating Zone Type HiLight | Mounting data No data in PDM for HQF |
| Number of power levels 9 | Residual heat indicator Yes | Temperature limiter Yes |
| Timer Yes | Hob energy consumption 193.5 Wh/kg | Control type +/- |
Felszerelés
| Power indicator lamp Yes |
Műszaki adatok
| Connection cable colour White | Connection type 1N~230 V | Country of Origin on Rating Label no_data_PDM |
| Cut out size - depth 490 mm | Cut out size - width 285 mm | Display color Red |
| Edge finish C-cut | Gross volume 0.0313 m³ | Maximális teljesítmény 3 kW |
| In-furniture depth 42 mm | Net depth 520 mm | Net height 48 mm |
| Nettó tömeg 4.6 kg | Net width 300 mm | Number of heating elements 2 |
| Type of plug or cable Euro 3x0,75mm2 | Position of connection cable inlet Middle - rear | Position Of Connection Cable Middle - rear |
| Connection cable Power cord with plug | Power cabel length 150 cm | Tápfeszültség 230V |
| Hob type Ceramic |
